No Voltage Drop 48VDC IP67 Dimmable Flicker Free T6 LED Poultry Light
• 48VDC No Volate Drop, more safer
• Smoth dimming from 0-100%
• Dimmable and Flicker free

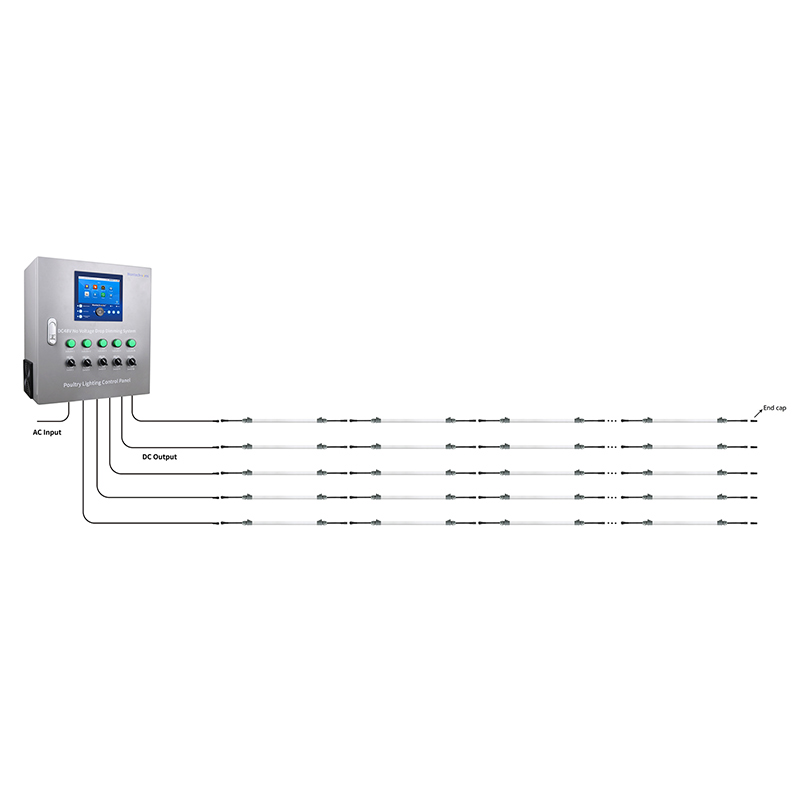

• With cable for series connection
• Highly efficient LED with lifetime >50,000 hours
• Optimal light distribution
• IP67 and IP69K

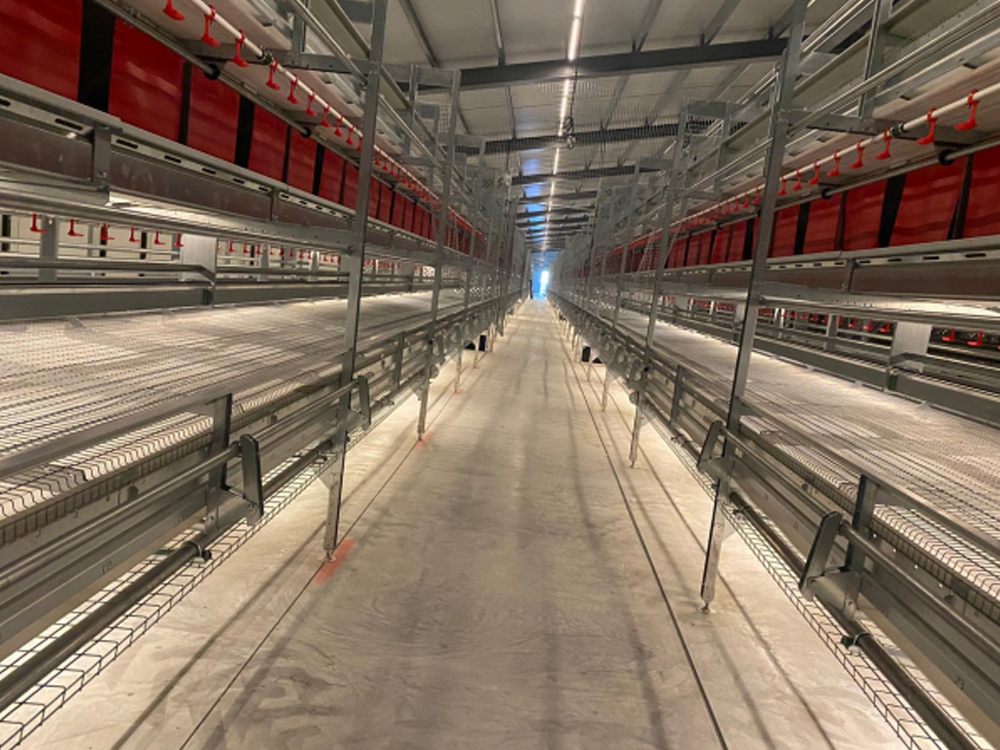

Suggest for caging and aviary system
Broiler Layer Rearing house
Description
Specification
Application
Support/Download
Description
| • DC48V output, more safer for caging and aviary system |
| • From the beginning to the end all lights are almost in same light intensity. @48Vdc by 1.5mm2 cable to 120M length in series @54Vdc by 1.5mm2 cable to 140M length in series |
| • Plug & Play Connection: Quick connection and easy installation |
| • Simulate sunrise and sunset: Dimmable from 0-10% Smoothly without flicker, keep animals conformatable. And LED tube light can light up even at 1% |

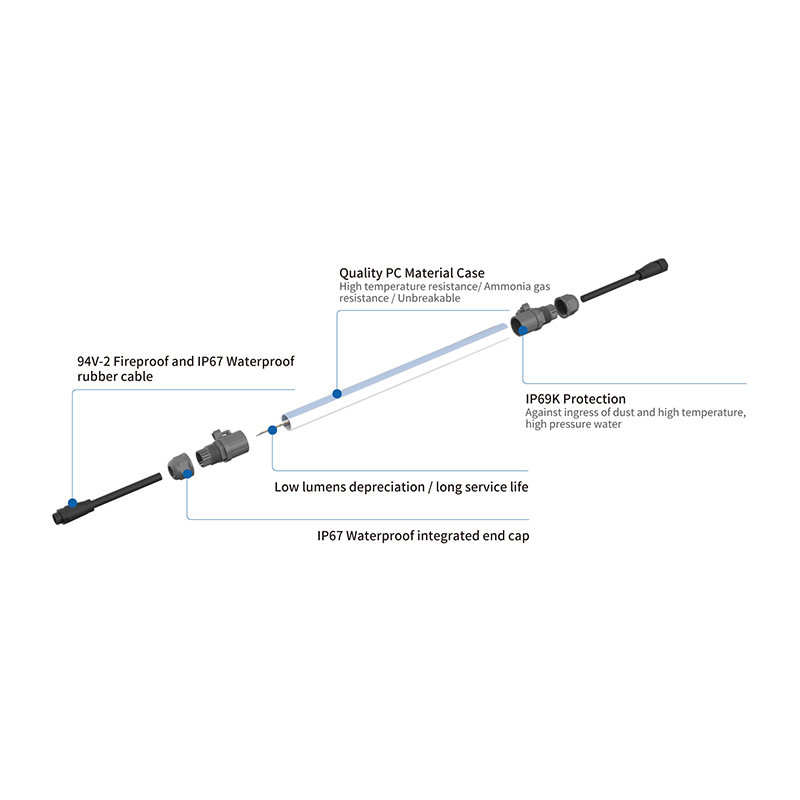

| • IP67 waterproof grade: Withstand high pressure water jet wash |
| • IP69K Protection: Perfect Dust-Proof and Waterproof, also withstand steaming cleaning |
| • Long lifespan and low lumen depreciation: L90B50 report result over 50,000hrs |
| • Optimize value and increase production for farmers: 2 Color/ 4 Color for option in one tube to improve animals behavious and save farmers cost. |
| • Quality and Fire-Proof Materials: 94-Save Lighting System and Safe Farm |
Specification
| Product Name: | LED T6 Poultry Light |
| Model Number: | HT-T6DC04W12FD, HT-T6DC05W15FD, HT-T6DC06W18FD |
| Power: | 4W, 5W, 6W |
| Lumens: | 560LM; 700LM; 840LM |
| Length: | OD 20MM X1200mm(4W), OD 20MM X 1500mm(5W), OD 20MM X1800mm(6W), Customized |
| Input Voltage: | 48/54Vdc |
| Body Material: | Imported Japan PC material, Full Aluminum |
| Dim: | 0-100%, Dimmable, flicker free |
| Color: | SIngle color from 2700-6500K, Two/Four color switchable |
| Beam Angle: | 180° |
| Cover: | Transparent, Milky |
| IP grade: | IP67, IP69K |
| Warranty: | 5 Years |
| Certificate: | CE, RoHs, SAA, PSE |
| Resistance: | Waterproof, Ammonia gas, Cleaning chemicals ect. |
| Working hours: | > 50,000Hrs |
| Working Temp.: | -20℃-55℃ |
| Storage Temp.: | -30℃-95℃ |
| Cable Type : | |
| B type for series connection |  |
| A type for Parallel Connection |  |
